PWM (Analog Output): Fading an LED

By the end of this project, you will:

• Understand the concept of Pulse Width Modulation (PWM) and duty cycle.
• Learn how the ESP32's built-in LED PWM controller works (16 channels, configurable frequency & resolution).
• Generate analog‑looking output from a digital pin to smoothly fade an LED.
• Use the ledcAttach() and ledcWrite() functions (ESP32 Core v3.x+ API).
• Observe the difference between a digital (ON/OFF) and an analog‑style (dimming) output.

In short: we'll build a simple circuit that dims an LED using the LED PWM controller of the ESP32.

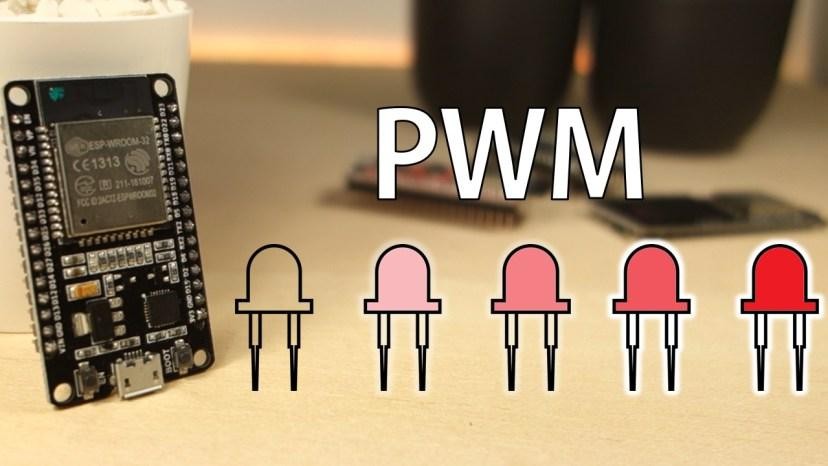

A digital pin is only ever fully ON (3.3 V) or OFF (0 V). But switch it on/off very fast and the LED's average brightness follows the fraction of time it's ON: the duty cycle:

The switching here is 5000 Hz (far faster than the eye), so you see steady brightness, not flicker. That's Pulse Width Modulation.

The ESP32 has a dedicated LED PWM controller that can generate PWM signals with different properties. With the ESP32 Core v3.x+ Arduino IDE, using it is simple: just two functions.

Step-by-step configuration

The two functions that do all the work: no channel management needed:

ledcAttach(pin, freq, resolution);      // 1-4: enable PWM on a GPIO
ledcWrite(pin, dutyCycle);              // 5: set brightness (0..255)

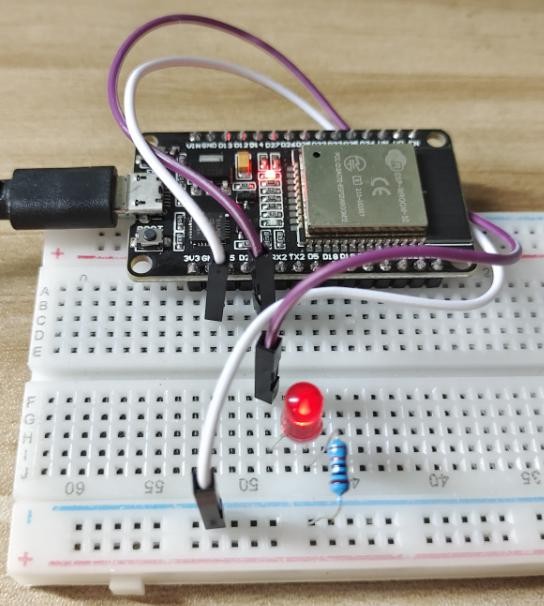

1. GPIO 4 → 220 Ω → LED anode (long leg)
2. LED cathode (short leg) → GND

That's it: just three connections. (Any output‑capable pin works; the sketch uses GPIO 4.)

Let's walk through the key parts of the sketch so you understand what each line does and why. The code is only about 35 lines but packs in several important concepts.

Step 1: Pin definition & PWM configuration constants

// LED (through 220 ohm) -> GPIO 4
const int ledPin = 4;

// PWM configuration
const int freq = 5000;        // 5 kHz: fast enough to avoid flicker
const int resolution = 8;    // 8‑bit → duty cycle value 0..255

ledPin identifies which GPIO the LED is on. Then we define two PWM properties: the frequency (how many times per second the pin switches on/off) and the resolution (how many distinct brightness levels: 8 bits = 256 levels, from 0 to 255). The ESP32 Core v3.x+ API manages the internal PWM channel for you, so you don't need to pick one.

Step 2: configuring the PWM hardware in setup()

void setup() {
  Serial.begin(115200);

  // Configure PWM on the GPIO pin (ESP32 Core v3.x+ API)
  ledcAttach(ledPin, freq, resolution);
}

A single function call prepares the PWM hardware:

• ledcAttach() tells the ESP32: "enable PWM on GPIO 4 at 5000 Hz with 8‑bit resolution". This internally allocates a PWM channel, configures the timer, and routes the signal to the pin, all in one step.

In older ESP32 Core versions you needed two separate calls (ledcSetup + ledcAttachPin), but v3.x+ simplifies it down to one.

Step 3: fading up, then down, forever in loop()

void loop() {
  // Fade in: duty cycle 0 -> 255 (0% -> 100% brightness)
  for (int dutyCycle = 0; dutyCycle <= 255; dutyCycle++) {
    ledcWrite(ledPin, dutyCycle);
    delay(15);
  }

  // Fade out: duty cycle 255 -> 0 (100% -> 0% brightness)
  for (int dutyCycle = 255; dutyCycle >= 0; dutyCycle--) {
    ledcWrite(ledPin, dutyCycle);
    delay(15);
  }
}

Key concepts: what each part really does

Expected output on the Serial Monitor

==============================================
 Project 3: ESP32 PWM (Analog Output)
==============================================
LED (PWM) -> GPIO 4
PWM: 5000 Hz, 8-bit (duty 0..255)
The LED should fade up and down continuously.
----------------------------------------------
Fading UP   (0 -> 255)
Fading DOWN (255 -> 0)
Fading UP   (0 -> 255)
...

The sketch prints one line per direction change: printing all 256 steps would flood the monitor. Watch the LED, not the text!

In this project you've learned how to generate PWM signals with the ESP32 using the Arduino IDE. Here's a summary of the key takeaways:

• The ESP32 has a LED PWM controller that can generate PWM signals with different properties (16 internal channels, but the v3.x+ API manages them for you).
• To dim an LED, you follow 5 steps: (1) choose a GPIO pin, (2) set the frequency, (3) set the resolution, (4) attach PWM with ledcAttach(), and (5) write the duty cycle with ledcWrite().
• You can use any pin that can act as an output as a PWM pin: all output-capable pins work.
• With the ESP32 Core v3.x+ API, ledcAttach() replaces the older ledcSetup() + ledcAttachPin() two-step process, and ledcWrite() takes the GPIO pin (not a channel) as its first argument.
• PWM at very low frequencies may cause visible flicker: 5000 Hz is a safe choice for LEDs.
